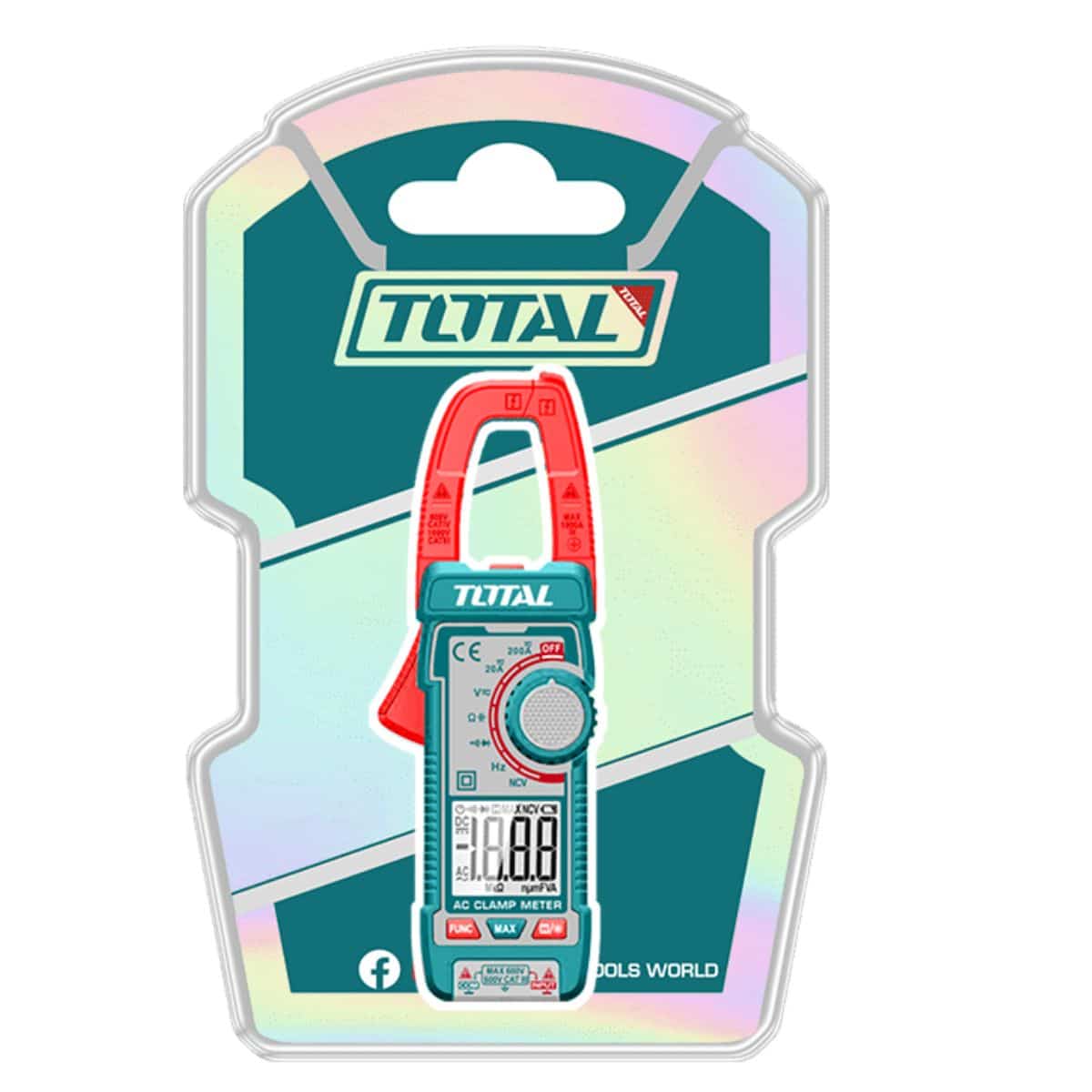

Total TMT762002 DC/AC clamp meter 400A 4000Counts

Total TMT762002 DC/AC Clamp Meter is a versatile mid-range digital clamp meter designed for measuring both direct current (DC) and alternating current (AC) up to 400A. It bridges the gap between basic AC-only clamp meters and heavy-duty 1000A industrial meters.

Key Technical Specifications

• Display & Technology: True RMS 4000 counts for reliable readings on complex or non-sinusoidal AC waveforms.

• DC / AC Current Ranges: 4A / 40A / 400A.

• DC / AC Voltage Ranges: 400mV / 4V / 40V / 600V.

• Resistance Range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ.

• Capacitance Range: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF.

Key Diagnostic Functions & Features

• Non-Contact Voltage (NCV) Detection: Safely tests for live wires without physical contact.

• Diode & Continuity Testing: Built-in audio/visual indicator for quick circuit tracing.

• Data Hold & Flashlight: Holds readings on screen and includes a built-in work light for dark junction boxes.

• Power Management: Auto Power-Off (APO) to conserve battery life, along with a low-battery indicator.

• Power Supply: Powered by 2× AAA (LR03) batteries.

• Packaging: Typically packed in double blister packaging with test leads included.
