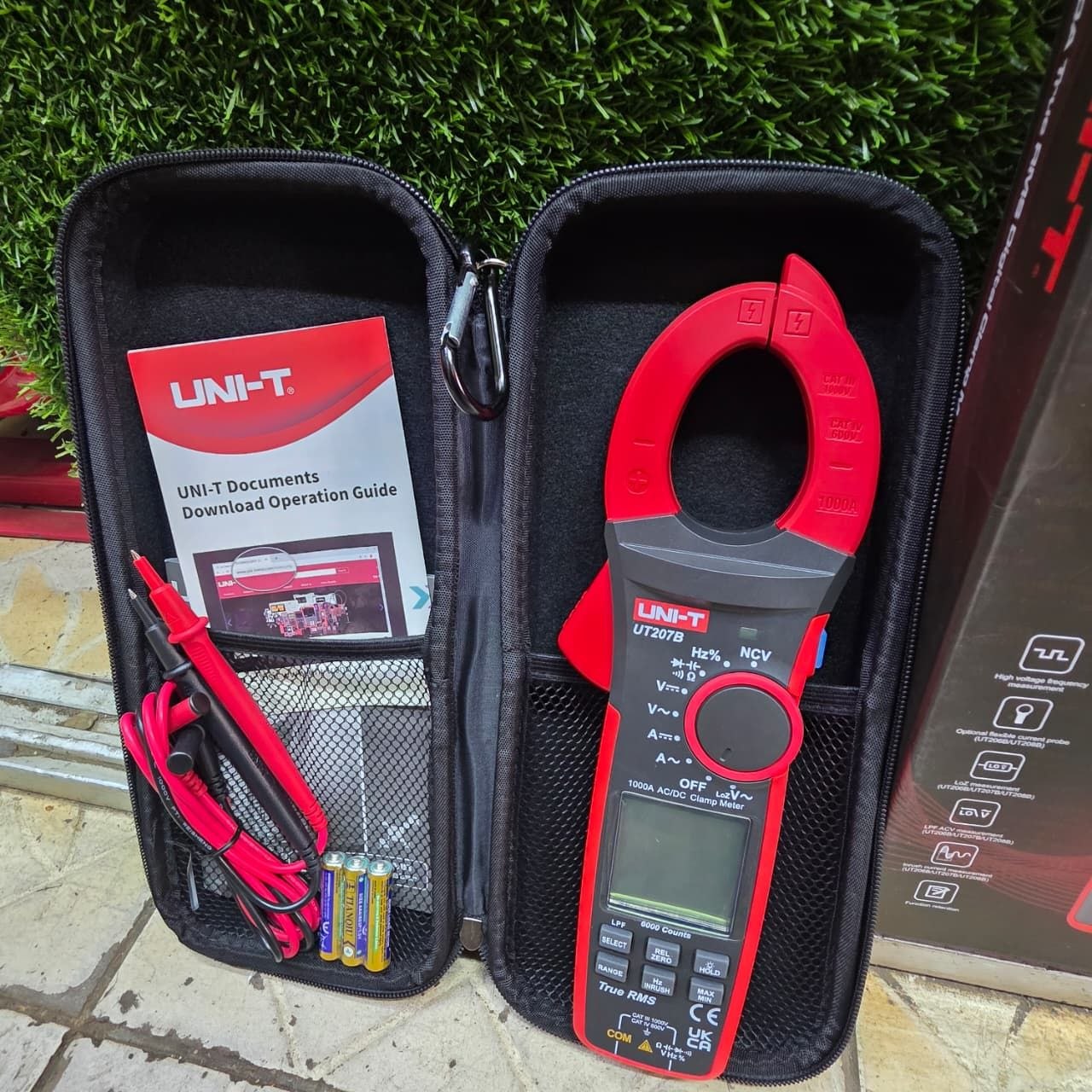

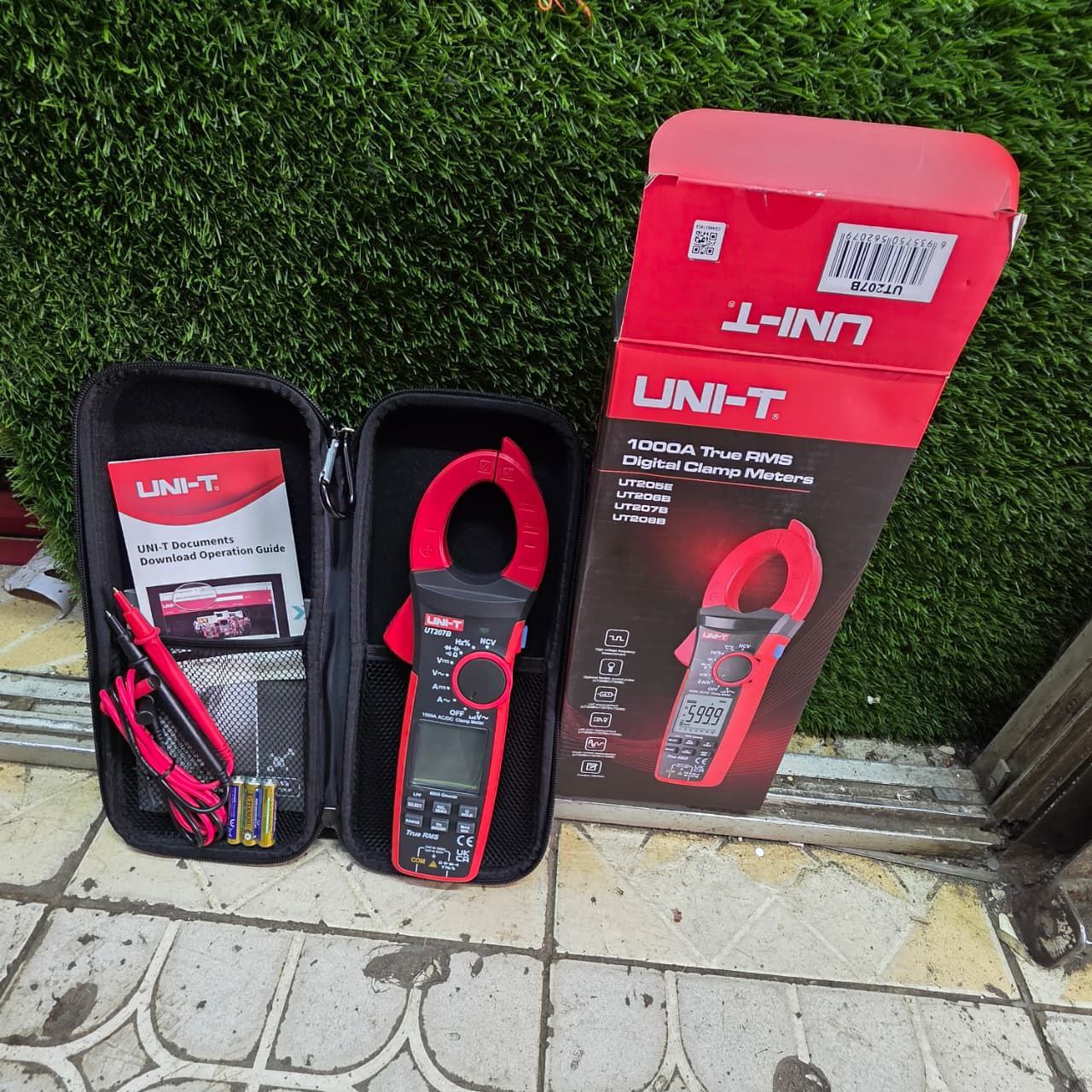

UNI-T UT207B 1000A True RMS Digital Clamp Meter
KSh16,500.00
Key Features & Highlights
-
1000A AC/DC Current Capability: Measures heavy current loads without breaking the circuit, suitable for industrial motor drives, solar arrays, and main distribution panels.
-
Inrush Current Measurement: Captures startup/surge currents when motors, compressors, or transformers spin up.
-
Low Pass Filter (LPF): Filters out high-frequency noise from variable frequency drives (VFDs) and inverter systems for clean, accurate readings.
-
LoZ Voltage Measurement: Low impedance mode eliminates ghost voltages caused by stray capacitive coupling in ungrounded or long wire runs.
-
Flexible Current Clamp Compatible: Features an external input jack supporting optional Rogowski flexible current sensors (e.g., UT-CS09D) to extend current measuring capability up to 3000A AC.
-
Non-Contact Voltage (NCV) & Flashlight: Integrated visual/audible NCV detector and an LED worklight built directly into the jaw tip for dark panels.
UNI-T UT207B is a professional-grade, heavy-duty 1000A AC/DC True RMS digital clamp meter. Engineered for industrial technicians, solar installers, and commercial electricians, it features high safety ratings, inrush current measurement, low-pass filtering, and an optional flexible current probe expansion for tight or high-amperage spaces.
Core Specifications
| Specification | Range / Detail |
| AC / DC Current | Up to 1000A (60A / 600A / 1000A) |
| AC / DC Voltage | Up to 1000V |
| AC Voltage Frequency | 10Hz – 10kHz |
| Resistance | 600Ω to 60MΩ |
| Capacitance | 60nF to 60mF (60,000 µF) |
| Frequency | 10Hz to 1MHz |
| Duty Cycle | 10.0% – 90.0% |
| Display Count | 6000 counts with auto backlight & analog bar graph |
| Jaw Opening | 42 mm (accommodates large conductors/busbars) |
| Safety Rating | CAT III 1000V / CAT IV 600V |
