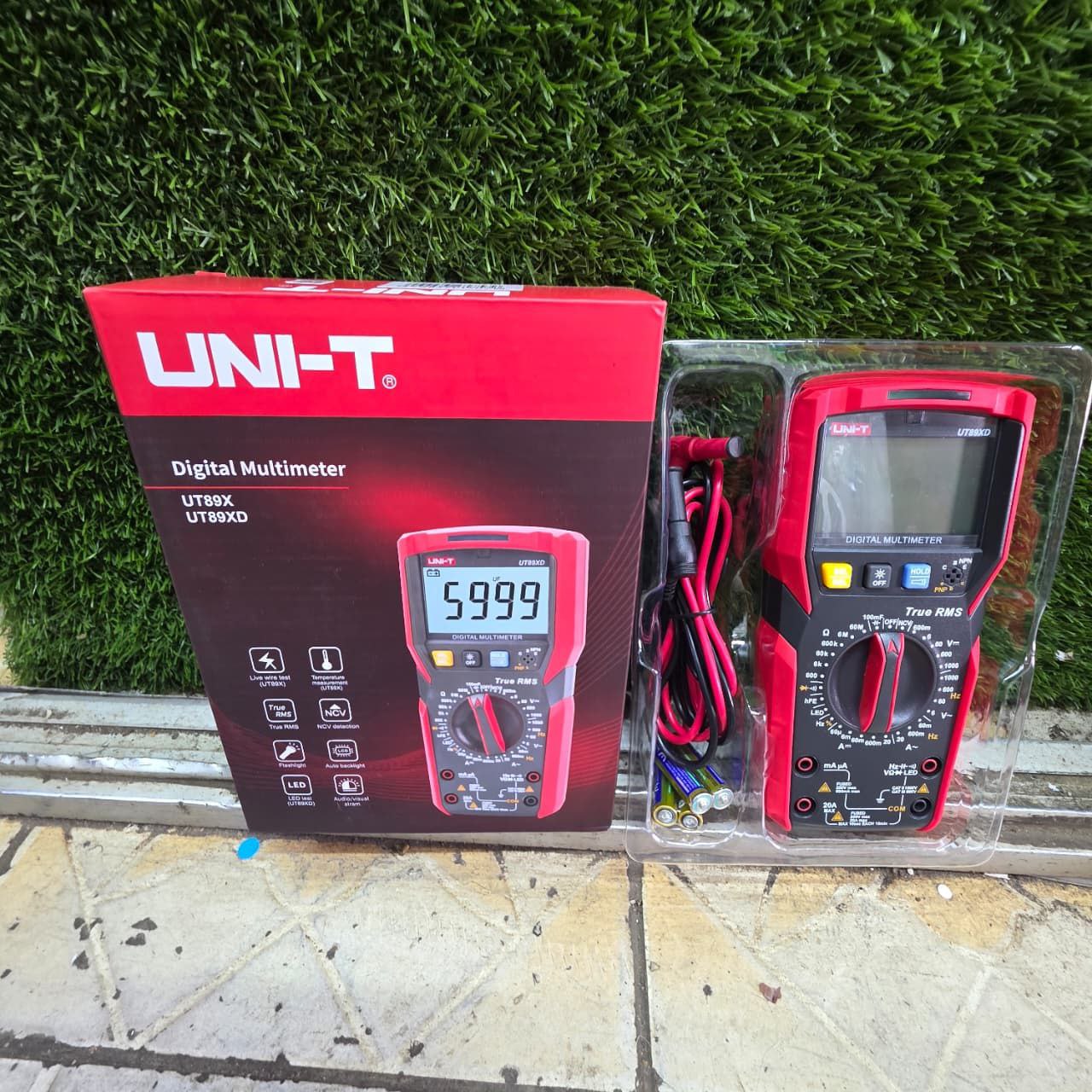

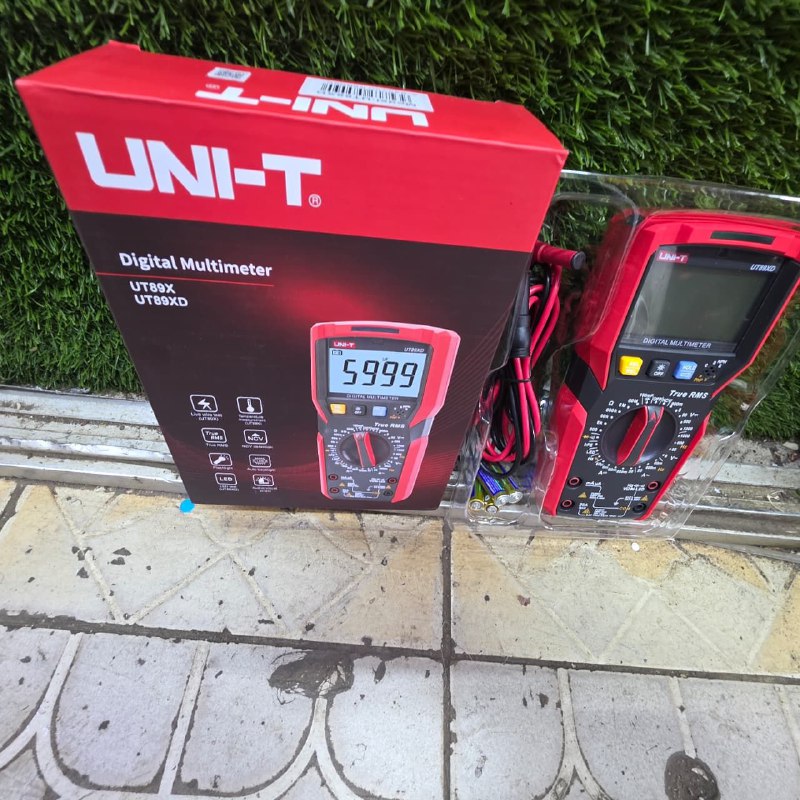

UNI-T UT89X Digital Multimeter
KSh5,999.00
Key Features & Highlights
-
Dual-Level NCV Detection: Features visual (LED) and audible indicators that differentiate between lower voltage fields (~12V AC) and higher voltage mains (~220V AC).
-
20A High-Current Capacity: Supports up to 20A current measurements, higher than the standard 10A rating found on most multimeters in this class.
-
Temperature & Transistor Testing: Includes a K-type thermocouple probe for temperature readings and built-in hFE sockets for measuring NPN/PNP transistors.
-
Audible & Visual LED Alerts: Provides sound and color-coded LED notifications for continuity tests, NCV level identification, and live wire checks.
-
Worklight & Auto Backlight: Outfitted with a rear flashlight and a sensor-activated LCD backlight for dim electrical enclosures and job sites.
-
Durable Enclosure: Housed in a thick rubber holster engineered to withstand 1-meter drops.
UNI-T UT89X is a heavy-duty, True RMS digital multimeter designed for electricians, HVAC technicians, and industrial electronics troubleshooting. It is part of UNI-T’s popular UT890/UT89X series, known for its high current capacity (up to 20A), dual-range non-contact voltage detection, and rugged drop resistance.
Core Specifications
| Specification | Range / Detail |
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V |
| AC Voltage | 6V / 60V / 600V / 1000V |
| AC / DC Current | 60µA / 6mA / 60mA / 600mA / 20A |
| Resistance | 600Ω to 60MΩ |
| Capacitance | 6nF to 100mF (100,000 µF) |
| Frequency | 9.999Hz to 9.999MHz |
| Temperature | -40°C to 1000°C (-40°F to 1832°F) |
| Display Count | 6000 counts with auto backlight |
| Safety Rating | CAT III 1000V / CAT IV 600V |
