Total TMT7610001 Digital AC clamp meter 1200A 6000 counts
KSh7,999.00
Key Features & Functions
-
True RMS Measurement: Ensures precise readings when measuring non-linear or distorted AC waveforms.
-
LowZ & LPF (VFD): Features Low Impedance (LowZ) mode to eliminate ghost voltages and Low Pass Filter (LPF) for accurate voltage and frequency measurements on Variable Frequency Drives.
-
VA Color Screen: Easy-to-read, illuminated color display suitable for dark environments and low-light working conditions.
-
Testing Functions: Diode testing, continuity buzzer, frequency/duty cycle measurement, and temperature sensing.
-
Utility Features: Data Hold, Low Battery Indication, Auto Power Off to preserve battery life.
-
Power Source: Powered by 3 × 1.5V AAA (LR03) batteries.

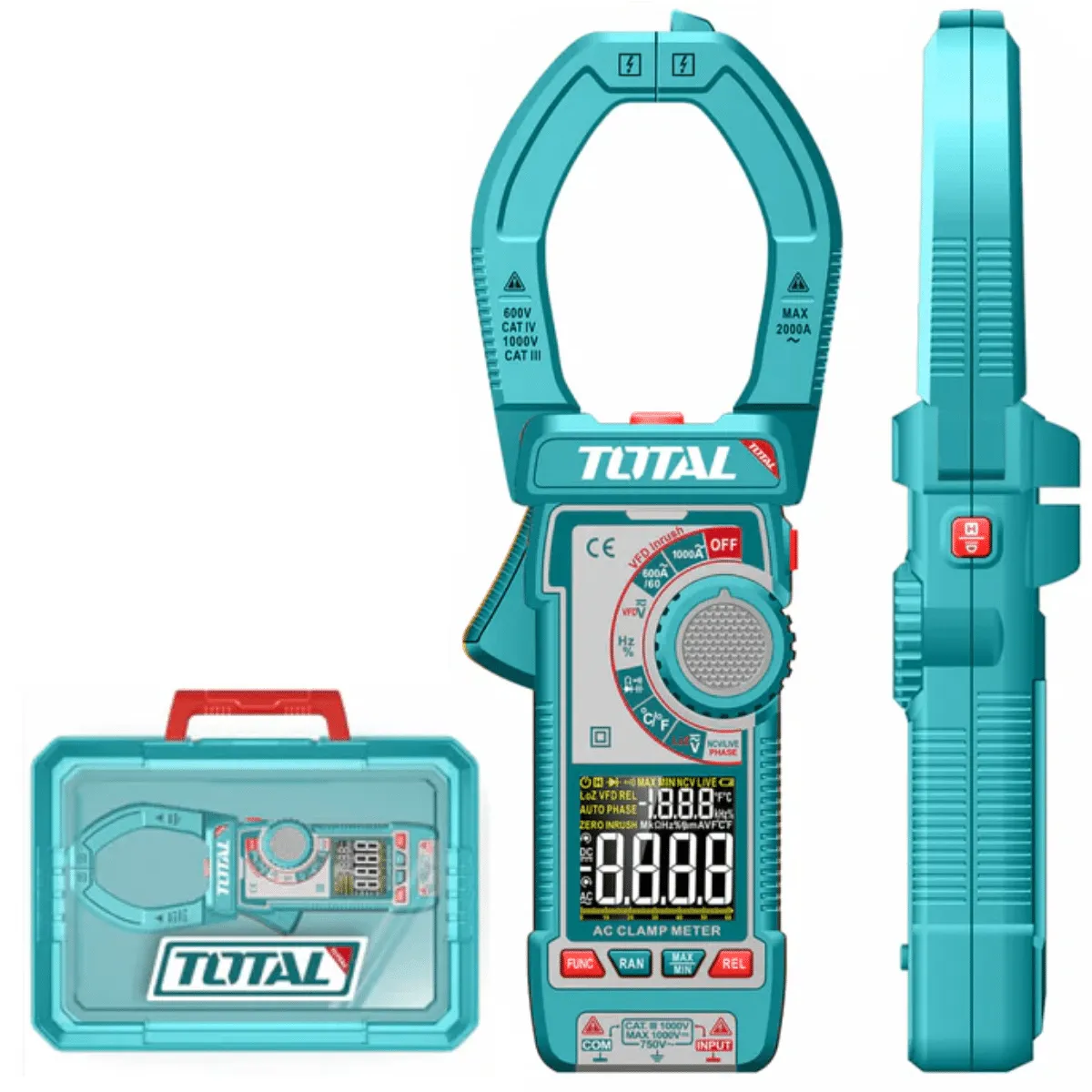

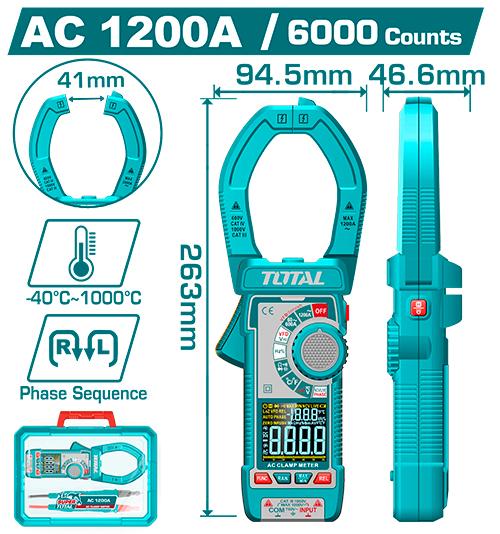

TOTAL TMT7610001 Digital AC Clamp Meter is a high-precision, industrial-grade electrical testing tool equipped with True RMS and a 6000-count high-contrast VA color display.
Technical Specifications
| Parameter | Range / Specification |
| Display | 6000 Counts True RMS (VA Color Display Screen) |
| AC Current | 60A / 600A / 1000A (up to 1200A peak handling) |
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V |
| AC Voltage | 600mV / 6V / 60V / 600V / 750V |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance | 60.00nF / 600.0nF / 6.000µF / 60.00µF / 600.0µF / 6.000mF / 60.00mF |
| Frequency | 10Hz to 10MHz |
| Temperature | -40.0°C to 1000.0°C (-40.0°F to 1832.0°F) |
