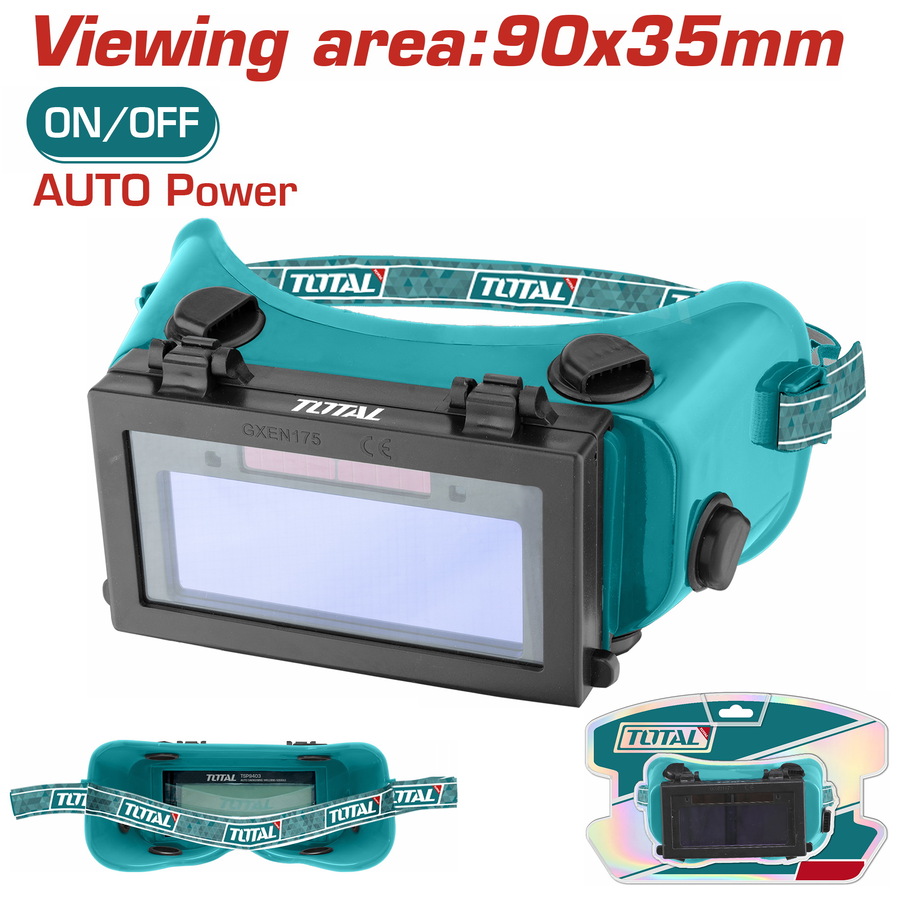

Total TSP9403 Auto-darkening welding goggle
KSh2,950.00
Auto-darkening
welding goggle
Auto-darkening welding goggle
Viewing area:90x35mm
Cartridge size：108x 51x 5mm
Sensors：2
Light state：4
Dark state：11
UV/lR protection：up to DlN 11
ON / OFF：automatic
Switch time(Light to dark)：<1ms
TlG amps rated：≥ 30 amps
Operating temperature：-5℃~ +55℃
Storing temperature：-20℃~ +70℃
Technical Specifications
| Parameter | Specification |
| Model | TSP9403 |
| Equipment Type | Auto-Darkening Welding Goggles |
| Viewing Area | $90 \times 35\ \text{mm}$ |
| Cartridge Size | $108 \times 51 \times 5\ \text{mm}$ |
| Arc Sensors | 2 independent optical sensors |
| Light State | DIN 4 |
| Dark State | DIN 11 |
| UV/IR Protection | Up to DIN 11 |
| Switching Time (Light to Dark) | $< 1\ \text{ms}$ ($< 1/1000\ \text{s}$) |
| TIG Rating | $\ge 30\ \text{Amps}$ |
| Power Supply | Solar cell + CR1025 Lithium Battery |
| Power Control | Fully Automatic ON / OFF |
| Operating Temperature | $-5^\circ\text{C}$ to $+55^\circ\text{C}$ |
| Storage Temperature | $-20^\circ\text{C}$ to $+70^\circ\text{C}$ |
| Packaging | Double Blister |
Key Operational Features
-
Rapid Reaction ADF Filter: High-speed lens transition ($< 1\ \text{ms}$) prevents flash burn and eye strain by instantly dimming the moment an arc is triggered.
-
Dual Arc Sensors: Two separate optical arc sensors detect the welding flash from multiple angles to maintain filter engagement even if one sensor is partially obstructed.
-
Solar-Assisted Power Cell: Utilizes ambient solar energy during operation supported by a CR1025 battery to maintain constant sensor power and auto-switching reliability.
-
Compact & Flexible Profile: Lightweight design with an adjustable elastic headband fits comfortably under hard hats and around protective eyewear for work in awkward positions or confined quarters.
