Total TAC2182301HT Ultrathin diamond disc（Mesh rim）230(9″)X22.2MM
KSh2,999.00
Key Features & Applications
-
Ultrathin Mesh Rim Design: The ultra-thin cross-mesh turbo rim significantly reduces material resistance and friction, providing clean, smooth, chip-free cuts in extra-hard materials like porcelain and vitrified tiles.
-
10mm Segment Height: Higher diamond matrix height offers an extended service life and sustained cutting performance over long job site projects.
-
Reinforced Steel Flange Core: Built with a reinforced center ring core to minimize blade vibration, prevent wobbling, and ensure straight, accurate high-speed cutting.
-
Fast Cooling Flute Structure: The continuous mesh pattern channels dust out efficiently while promoting rapid airflow cooling during both dry and wet cutting operations.
-
Broad Application Range: Specifically optimized for cutting porcelain tiles, hard ceramic, marble, granite slabs, terrazzo, and hard clay tiles.

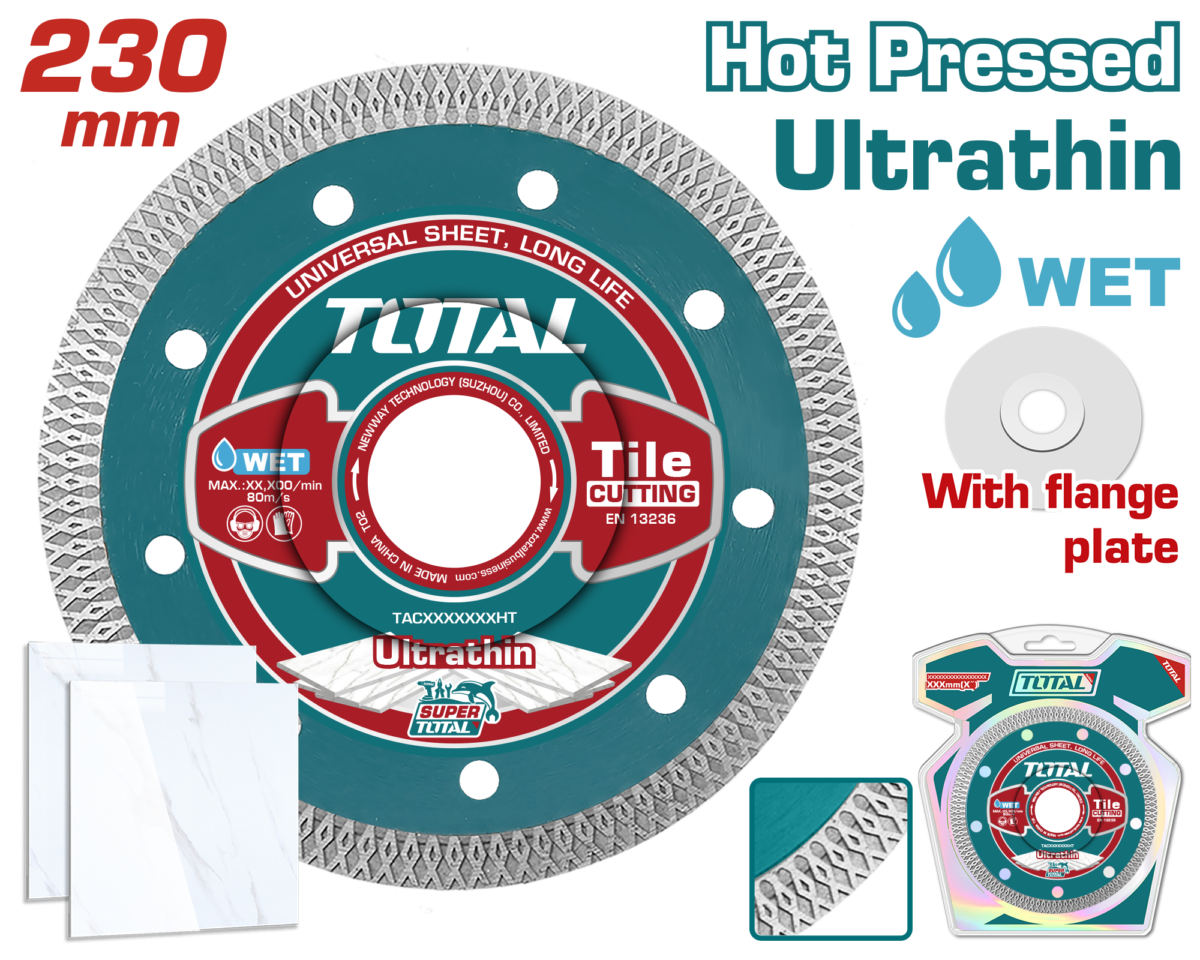

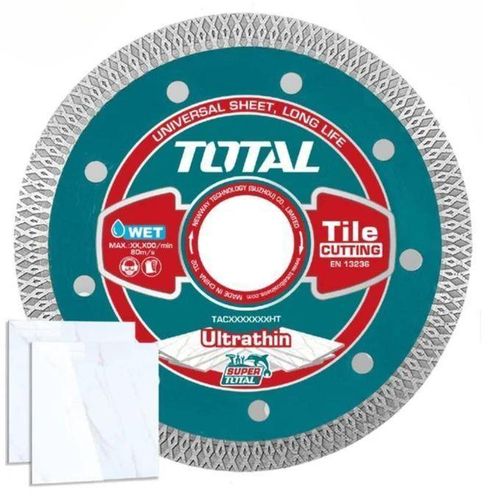

TOTAL TAC2182301HT is a 230mm (9″) Ultrathin Diamond Cutting Disc with Mesh Rim, specially engineered for high-precision, chip-free cutting of hard tiles, porcelain, ceramic, marble, and granite.
Technical Specifications
| Parameter | Specification |
| Model Code | TAC2182301HT |
| Brand | TOTAL Tools |
| Disc Diameter | 230 mm (9 inches) |
| Bore / Arbor Size | 22.23 mm (7/8″) |
| Rim Type | Ultrathin Mesh Turbo Rim |
| Blade Thickness | ~1.8 mm – 2.0 mm (Ultrathin) |
| Segment Height | 10 mm |
| Cutting Mode | Wet & Dry Cutting |
| Max Operating Speed | 6,600 RPM (80 m/s) |
| Compatible Tools | 230mm (9″) Angle Grinders & Tile Cutters |
| Packaging | Color Box / Blister Packaging |
