Total TAC2181801HT Ultrathin diamond disc（Mesh rim 180( 7’’)X22.2MM
KSh2,650.00
Key Features & Applications
-
Ultrathin Mesh Rim Design: Features a fine cross-mesh diamond rim that drastically reduces friction and cutting resistance, enabling clean, smooth, chip-free edges on fragile and hard materials.
-
10mm Extended Segment Height: Packed with high-density synthetic diamond grit across a 10mm high segment to ensure long service life and continuous sharpness.
-
Reinforced Steel Center Hub: Designed with a strengthened core flange to reduce deflection, eliminate side wobble, and deliver straight, true cuts under load.
-
Efficient Heat Dissipation: Mesh flutes clear micro-dust rapidly and facilitate continuous air/water cooling, allowing for both dry and wet cutting applications.
-
High-Precision Applications: Ideal for cutting porcelain, hard ceramic tiles, marble, granite, terrazzo, and vitrified clay tiles without edge blowout.

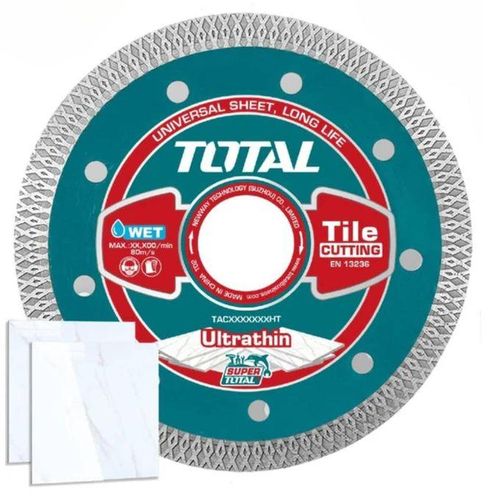

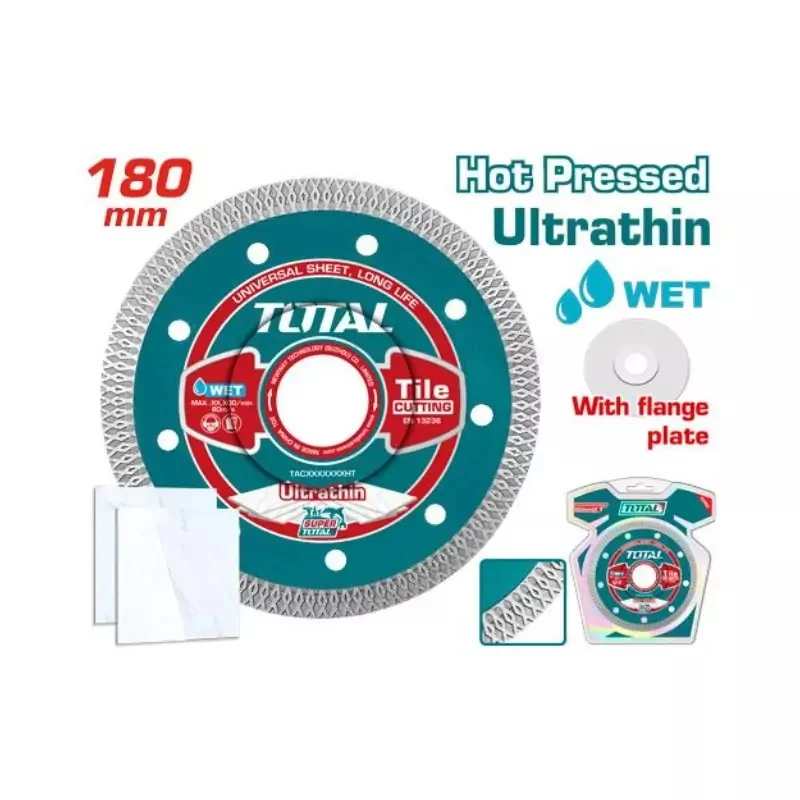

TOTAL TAC2181801HT is a 180mm (7″) Ultrathin Diamond Cutting Disc with Mesh Rim, engineered for precision, chip-free cutting of porcelain tiles, hard ceramic, marble, and granite slabs.
Technical Specifications
| Parameter | Specification |
| Model Code | TAC2181801HT |
| Brand | TOTAL Tools |
| Disc Diameter | 180 mm (7 inches) |
| Bore / Arbor Size | 22.23 mm (7/8″) |
| Rim Type | Ultrathin Mesh Turbo Rim |
| Blade Thickness | ~1.4 mm – 1.6 mm (Ultrathin) |
| Segment Height | 10 mm |
| Cutting Mode | Wet & Dry Cutting |
| Max Operating Speed | 8,500 RPM (80 m/s) |
| Compatible Tools | 180mm (7″) Angle Grinders & Tile Saw / Cutting Machines |
| Packaging | Color Box / Blister Packaging |
