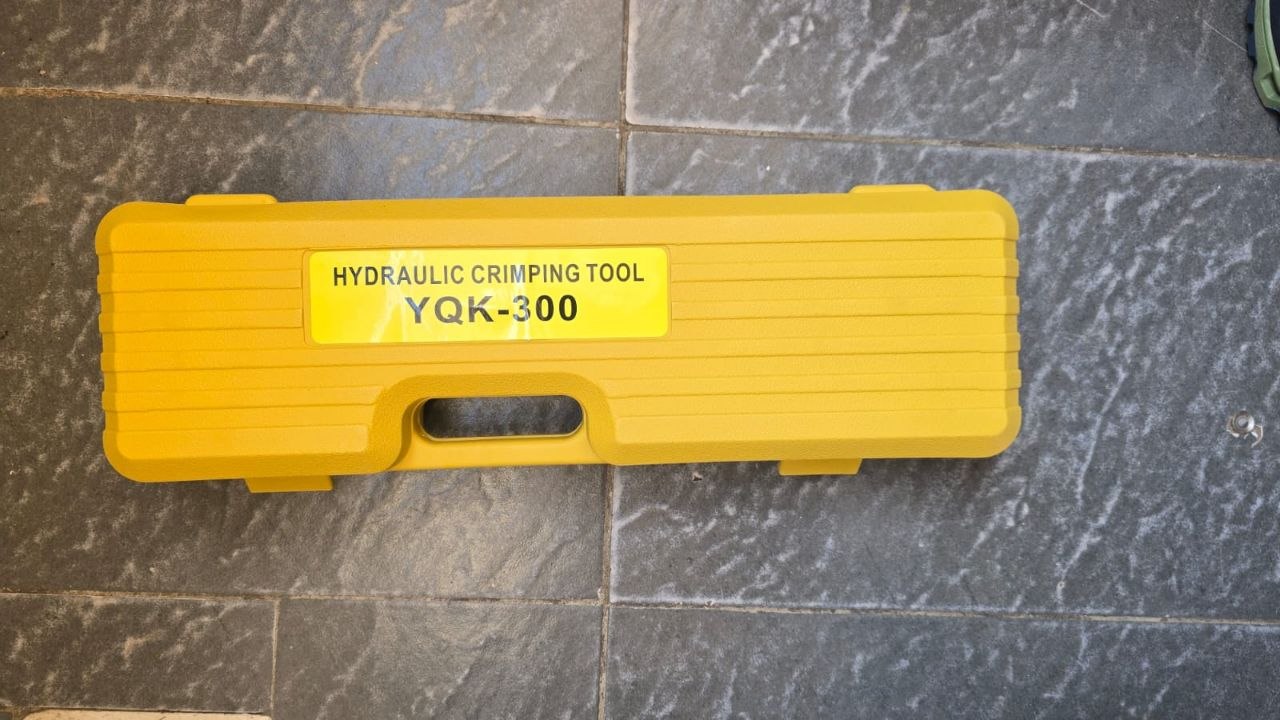

YQK-300 Manual Hydraulic Crimping Tool
KSh8,999.00
Core Features & Design
-
Two-Speed Hydraulic Action: Built with a fast-advance mechanism that quickly closes the dies onto the terminal before shifting into high-pressure compression mode, saving time and pumping effort.
-
180-Degree Rotatable Head: The C-head design can rotate freely to accommodate awkward angles and tight spaces during panel building or overhead/underground cable installations.
-
Built-In Safety Valve: Automatically releases pressure when the maximum crimp limit or tonnage is reached to prevent over-pressurization.
-
Insulated Handles: Typically fitted with fiberglass or thick rubber-dipped grips for comfortable handling and basic electrical safety.
YQK-300 is a popular manual hydraulic crimping tool designed for securely attaching heavy-duty copper and aluminum cable lugs, terminals, and connectors to power cables. By utilizing a self-contained hydraulic mechanism, it allows users to deliver high-tonnage compression force with minimal physical effort compared to standard mechanical hand crimpers.
Key Specifications
| Feature | Specification |
| Model | YQK-300 |
| Crimping Range | $16\text{ mm}^2$ to $300\text{ mm}^2$ (approx. 6 AWG to 600 MCM) |
| Maximum Crimping Force | 100 kN to 120 kN (approx. 10 to 12 Tons) |
| Maximum Stroke | 18mm to 22mm |
| Crimping Type | Hexagon compression |
| Standard Included Dies | 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, $300\text{ mm}^2$ (varies slightly by manufacturer) |
| Tool Length | Approx. 475 mm |
| Tool Weight | Approx. 3.6 kg to 6.0 kg (depending on build materials) |
