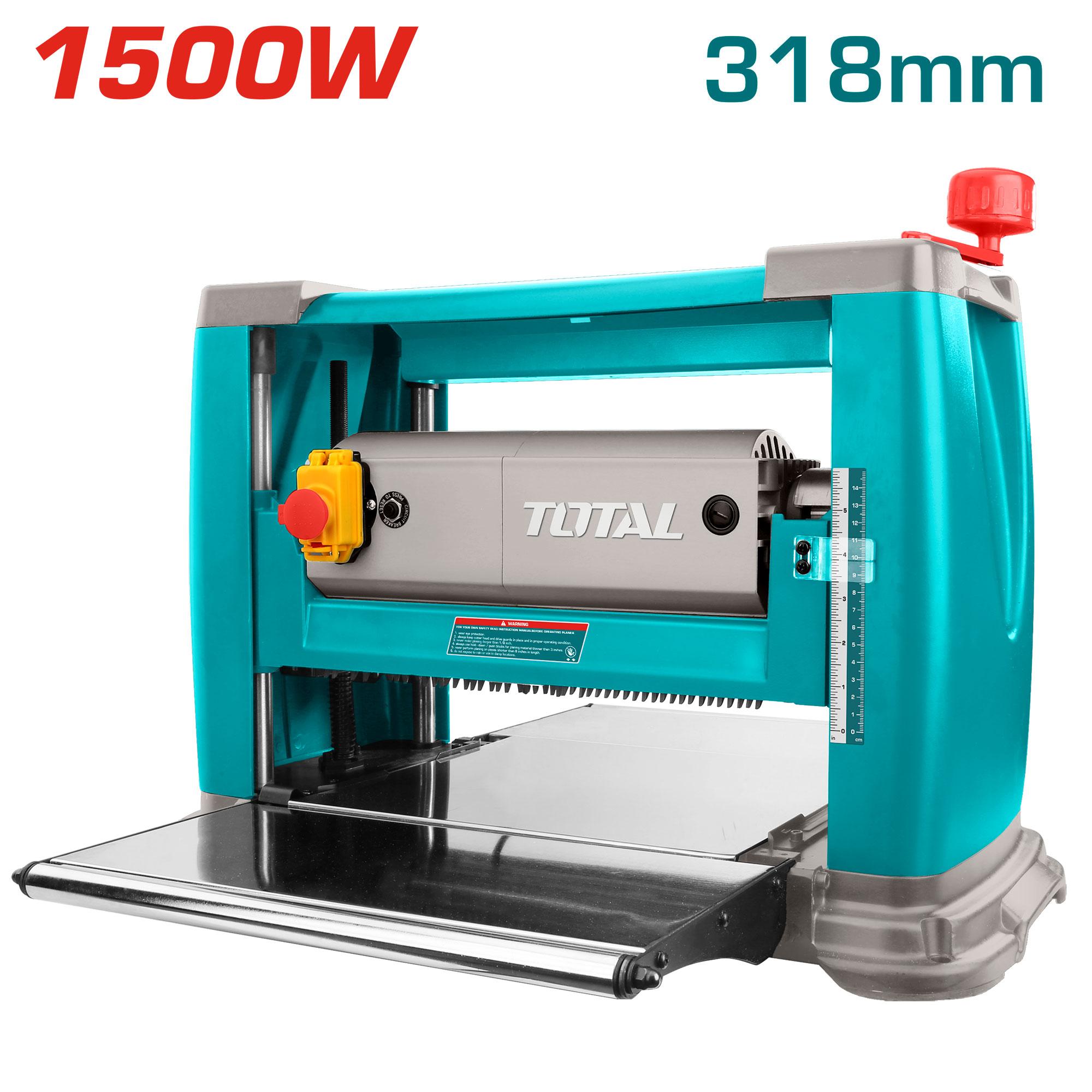

Total TTKP15001 Thickness planer 1500W 318mm
KSh51,500.00
Thickness planer
Voltage:220-240V~50/60Hz
Input power:1500W
No-load speed:9000rpm
Max.cutting length:127mm
Max.cutting width:318mm
Max.cutting depth:2.5mm
Cutting thickness:5~153mm
Feeding speed:8m/min
Packed by carton box
TOTAL TTKP15001 is a 1500W benchtop thickness planer designed for heavy-duty woodworking, surface leveling, and dimensional stock preparation. Equipped with a 12.5-inch (318 mm) cutting bed and automatic feeding, it quickly turns rough-sawn lumber into smooth, uniformly sized boards.
Technical Specifications
| Parameter | Specification |
| Model | TTKP15001 |
| Input Power | 1500 W |
| Voltage / Frequency | 220–240 V ~ 50/60 Hz |
| Cutterhead / Blade Speed | 9000 rpm |
| Maximum Cutting Width | 318 mm (12.5 inches) |
| Minimum Cutting Length | 127 mm |
| Planing Thickness Capacity | 5 mm – 153 mm |
| Maximum Depth of Cut (Single Pass) | 2.5 mm |
| Automatic Feeding Speed | 8 m/min |
Key Features
-
High-Powered Motor: 1500W motor drives the 9000 rpm cutterhead smoothly through both softwoods and dense hardwoods.
-
Automatic Feed System: Integrated feed rollers pull workpieces through at a constant rate of 8 m/min for uniform material removal.
-
Precise Depth Adjustment: Simple depth control gauge and crank handle allow for incremental passes up to 2.5 mm depth of cut.
-
Fold-Down Infeed/Outfeed Tables: Extend overall support area to minimize board snipe during operation.
-
Dust Extraction Connection: Outfitted with a dust port hood to facilitate attachment to external dust extractors or workshop vacuums.
What’s Included in the Box
-
TOTAL TTKP15001 Thickness Planer Unit
-
1× Set of High-Speed Steel (HSS) Planer Blades (Pre-installed)
-
1× Dust Extraction Hood Assembly
-
1× Depth Adjustment Crank Handle
-
1× Blade Setting Gauge & Assembly Wrenches
