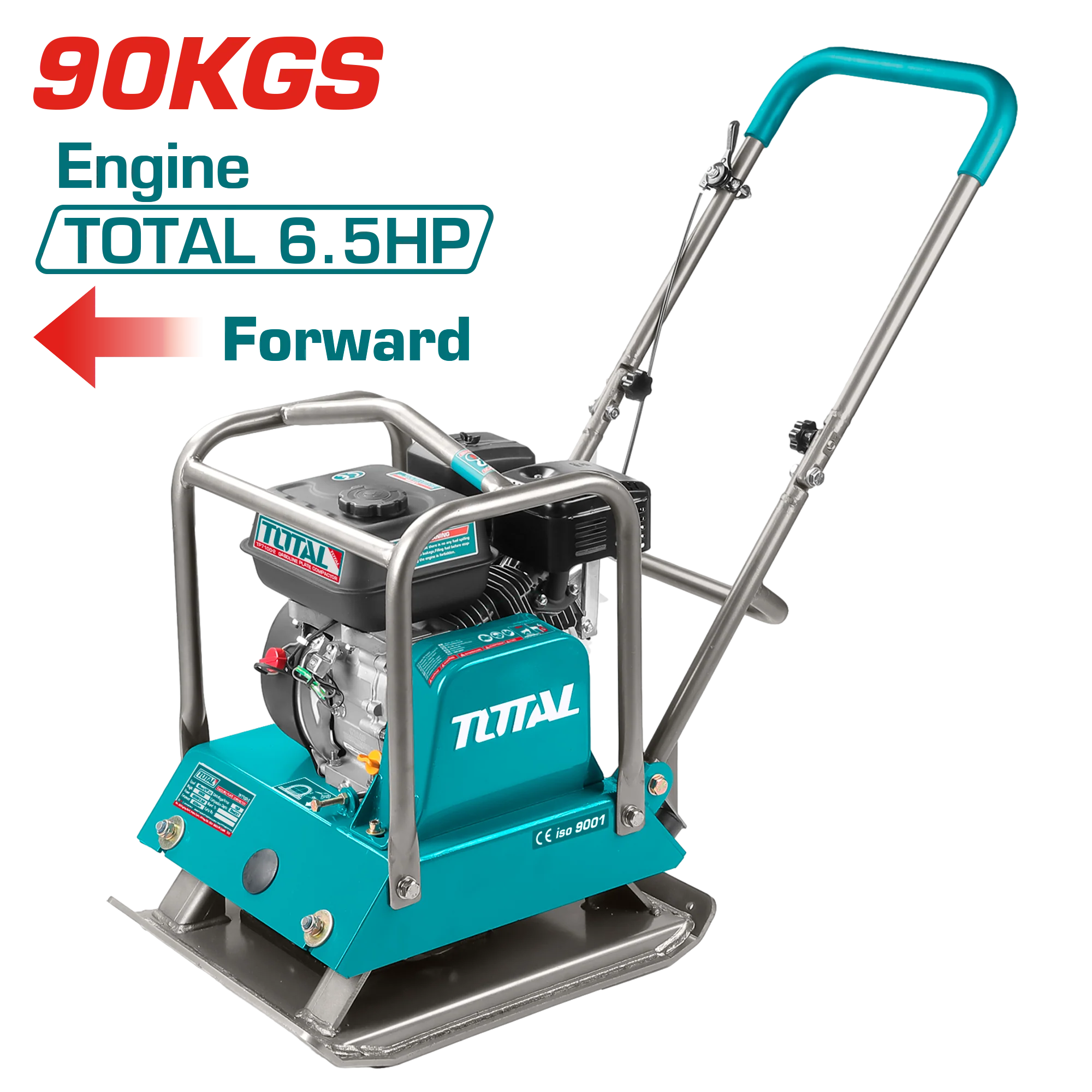

Total TP7100-2 Gasoline plate compactor 90Kg
KSh83,500.00
-
Robust Centrifugal Force (15 kN): Rapidly settles granular soils, sand, crushed stone, and asphalt layers, eliminating voids and preventing ground subsidence.
-
Curved Base Plate Design: Features rounded plate edges to maneuver smoothly around obstacles and flush against edges or foundation walls.
-
Sealed Belt Cover: Fully enclosed drive belt guard prevents abrasive sand, dust, and gravel from entering the pulley assembly, extending belt life.
-
Low-Vibration Iso-Mounts: Heavy-duty rubber shock absorbers isolate engine and exciter vibration from the handle structure, reducing operator fatigue.
-
Foldable Transport Handle: Ergonomic handle folds forward over the body for compact transport in vehicle beds and space-saving site storage.
Total TP7100-2 is an industrial gasoline-powered walk-behind plate compactor designed for ground preparation, soil stabilization, asphalt patching, and paving projects. Powered by a high-output 4.8 kW (6.5 HP) 4-stroke engine, it delivers 15 kN of centrifugal force at 4,200 vibrations per minute (VPM) to achieve effective compaction down to 30 cm.
Technical Specifications
| Feature | Specification |
| Model Code | TP7100-2 |
| Brand | TOTAL Tools |
| Engine Type | 4-Stroke, OHV Single Cylinder, Air-Cooled |
| Engine Output Power | 4.8 kW (6.5 HP) |
| Centrifugal Force | 15 kN |
| Vibration Frequency | 4,200 VPM |
| Compaction Depth | Up to 30 cm |
| Travel Speed | 45 cm/s (~27 m/min) |
| Operational Efficiency | Up to 660 $\text{m}^2/\text{hr}$ |
| Plate Size | 56 cm $\times$ 44 cm (or 50 cm $\times$ 45 cm, variant dependent) |
| Starting System | Manual Recoil Pull Starter |
| Operational Weight | 90 kg |
| Packaging | Packed in a carton box |
Key Features & Benefits
-
Robust Centrifugal Force (15 kN): Rapidly settles granular soils, sand, crushed stone, and asphalt layers, eliminating voids and preventing ground subsidence.
-
Curved Base Plate Design: Features rounded plate edges to maneuver smoothly around obstacles and flush against edges or foundation walls.
-
Sealed Belt Cover: Fully enclosed drive belt guard prevents abrasive sand, dust, and gravel from entering the pulley assembly, extending belt life.
-
Low-Vibration Iso-Mounts: Heavy-duty rubber shock absorbers isolate engine and exciter vibration from the handle structure, reducing operator fatigue.
-
Foldable Transport Handle: Ergonomic handle folds forward over the body for compact transport in vehicle beds and space-saving site storage.
