Total TP630-2 Gasoline concrete vibrator 21.5kg 4.0kW(5.5HP）
KSh38,500.00
Key Features & Benefits
-
Independent Gasoline Power: Eliminates reliance on site power sources or generators, providing maximum mobility across large construction sites and remote locations.
-
4.0 kW / 5.5 HP 4-Stroke Engine: Delivers reliable power and torque to maintain high vibration frequencies, even under heavy concrete resistance.
-
360° Swivel Base Frame: Protective steel roll cage rotates 360 degrees, allowing operators to move the poker shaft smoothly in any direction without binding or tipping the engine.
-
Quick-Connect Coupling: Universally compatible claw connection design allows for rapid, tool-free attachment and detachment of flexible vibrator poker shafts.

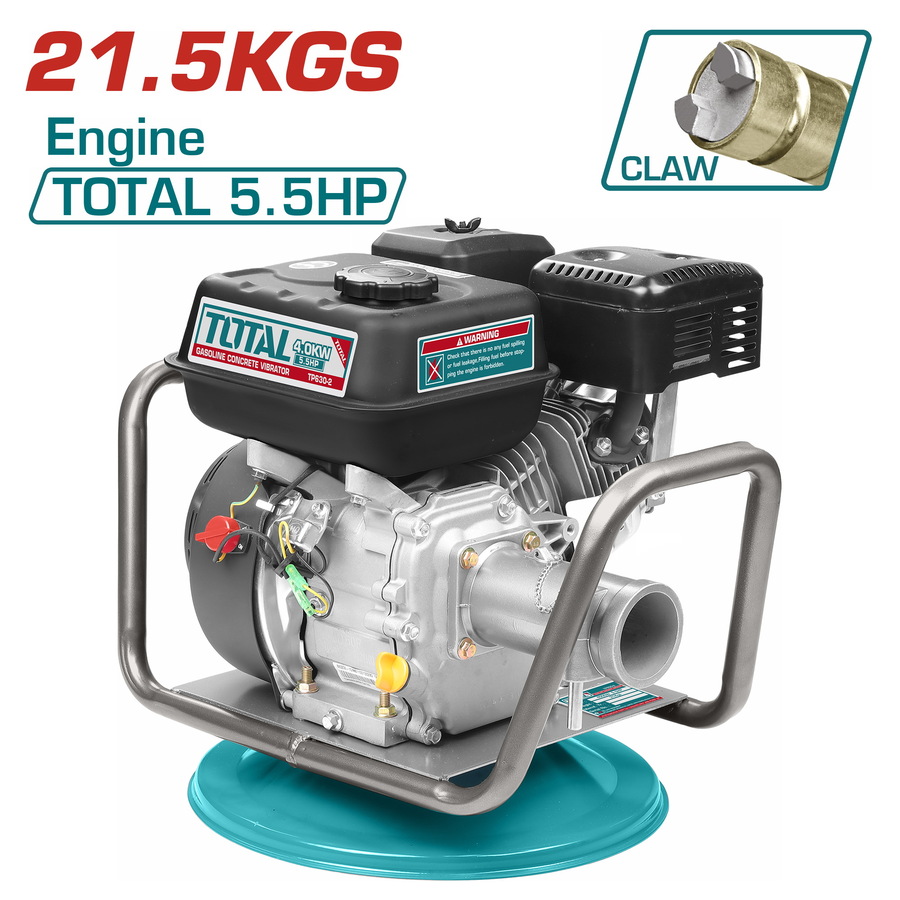

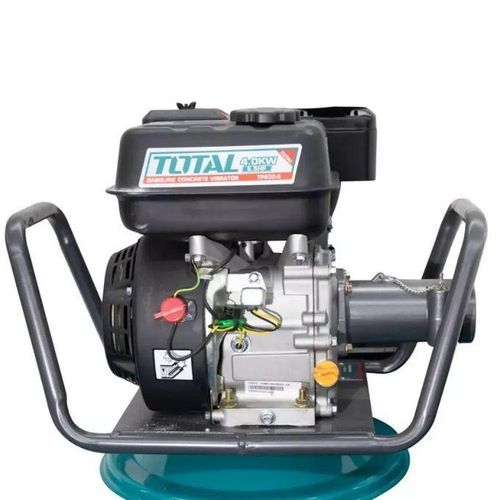

Total TP630-2 is a commercial-grade gasoline-powered concrete vibrator drive unit engineered for heavy-duty compaction work on construction sites without stable electrical power. Driven by a high-performance 4.0 kW (5.5 HP) 4-stroke engine mounted on a sturdy 360° swivel frame, it powers flexible poker shafts to eliminate air voids and ensure maximum concrete density in foundations, beams, and slabs.
Technical Specifications
| Feature | Specification |
| Model Code | TP630-2 |
| Brand | TOTAL Tools |
| Engine Type | 4-Stroke, OHV Single Cylinder, Air-Cooled |
| Max Output Power | 4.0 kW (5.5 HP) |
| Displacement | 163 cc |
| Fuel Tank Capacity | 3.6 Liters |
| Starting System | Manual Recoil Pull Starter |
| Coupling Interface | Claw Type / Dynapac Type Quick-Connect |
| Frame Type | 360° Swivel Base with Tubular Roll Cage |
| Net Weight | 21.5 kg |
| Compatible Shafts | TOTAL TPVP1451 (45mm) and equivalent poker lines |
| Packaging | Packed in a carton box |
