Edon battery charger CD-650A
KSh26,500.00
Key Features & Design
-
Dual Charging Modes (Standard & BOOST):
-
Normal Charge: Controlled rate for maintaining and trickle-charging battery banks safely.
-
BOOST Mode: High-current rapid charge with a integrated timer control to prepare flat batteries quickly.
-
Jump Start: High amperage output directly cranks engines with severely discharged batteries.
-
-

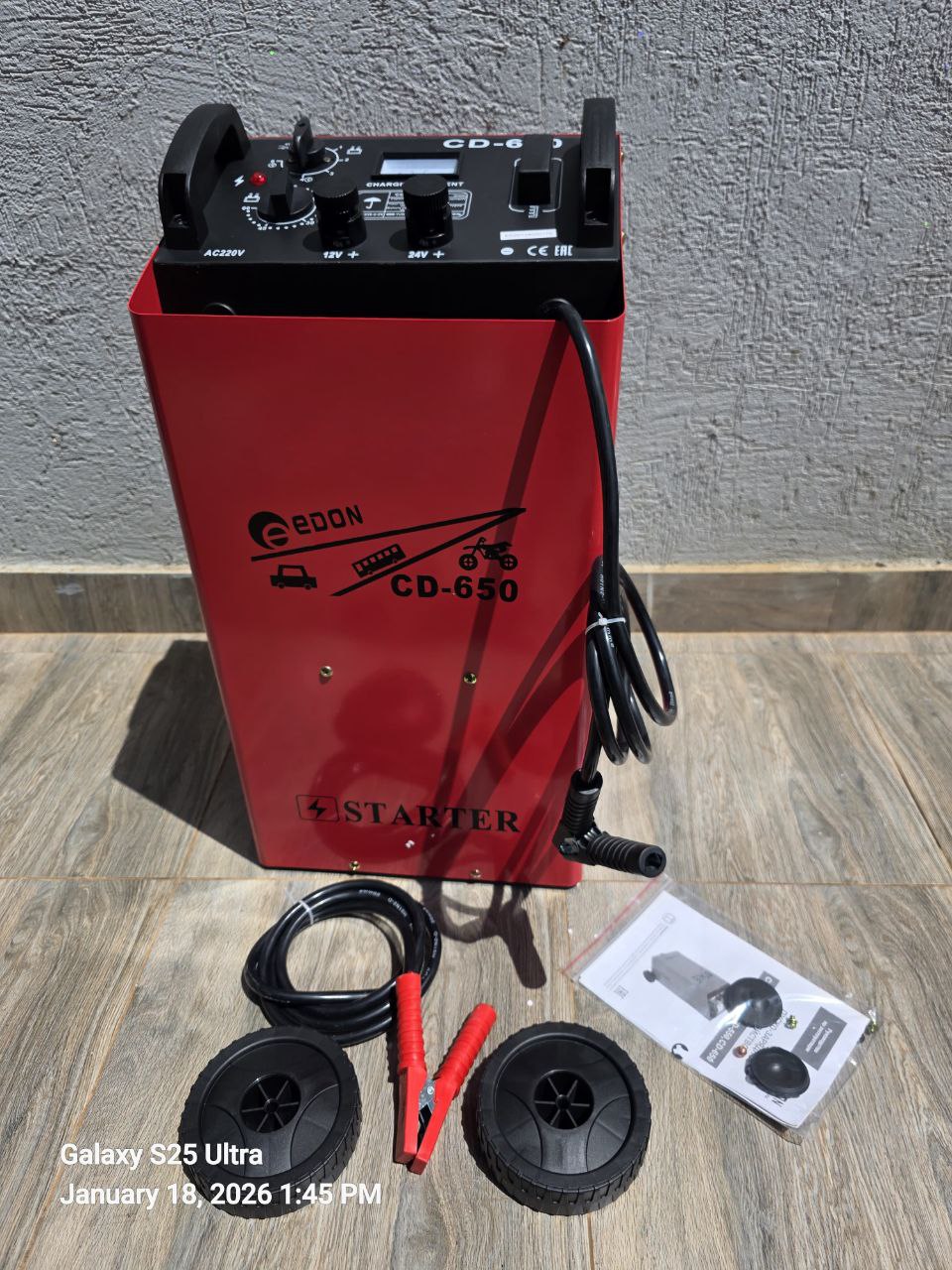

Heavy-Duty Mobile Cabinet: Steel enclosure with an integrated top push handle and transport wheels for workshop or job site mobility.
-
Analog Ammeter Display: Clear front panel meter provides real-time monitoring of charging current and starter output amps.
-
Integrated Safeties: Built-in protection against thermal overload, short circuits, and reverse polarity connections.
Edon CD-650A (also designated under the CD-650 series) is a high-capacity, commercial-grade wheeled battery charger and engine jump-starter. Positioned above the CD-550A, it offers higher amperage output designed for rapid charging of large battery banks and starting heavy-duty fleet vehicles, trucks, buses, and construction machinery.
Technical Specifications
-
Input Voltage: 220–240 V ~ 50/60 Hz (Single phase)
-
Charging Voltage Output: Dual 12 V / 24 V (Selectable switch)
-
Input Power: ~2.0 kW to 2.2 kW (Charging / Boost load)
-
Effective Charging Current: ~60 A – 90 A
-
Peak Start / Boost Current: Up to 500 A – 600 A (Engine jump-start assist)
-
Compatible Battery Capacities: Suitable for lead-acid batteries from 60 Ah up to 900 Ah
-
Tool Weight: ~28 kg – 32 kg (Heavy steel frame equipped with rear wheels)
