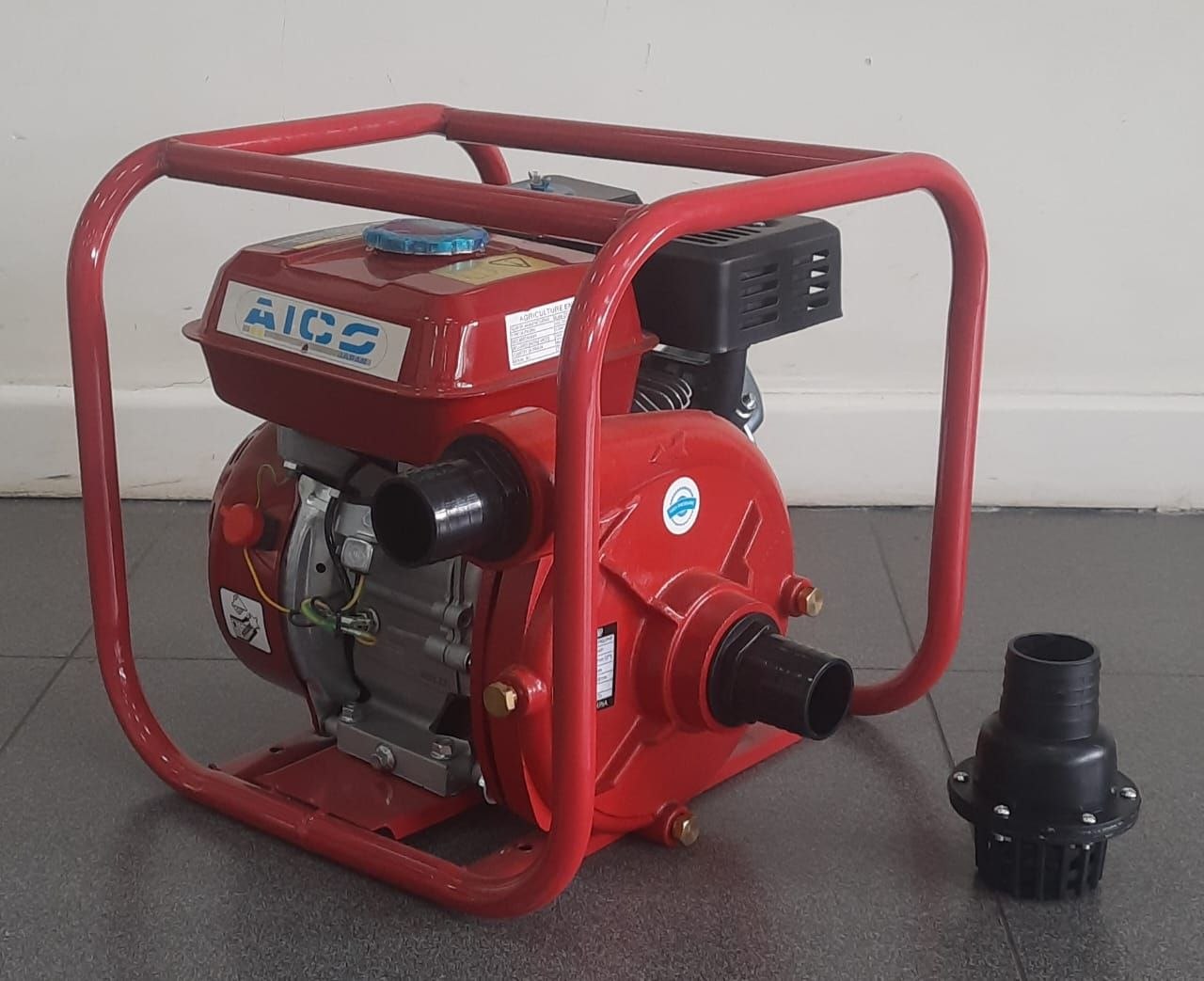

Aico Japan CAST IRON HIGH PRESSURE water pump 2 inches 8hp engine

Aico Japan ACP50ZPHP is an elite, heavy-duty variant that pairs an aggressive 8.0 HP petrol engine with a completely cast iron high-pressure pump body and dual-impeller system.

While standard high-pressure pumps use aluminum housings, the “ZP” cast-iron architecture is built specifically to resist internal wear from abrasive particles and handle the extreme PSI generated by multi-stage compression without warping or cracking.

Key Specifications & Features

• Brand/Model: Aico Japan ACP50ZPHP (Cast Iron High-Pressure Series)

• Engine Power: 8.0 HP 4-stroke, air-cooled, single-cylinder OHV petrol engine (approx. 230cc)

• Pump Material: Heavy-Duty Cast Iron (housing, volute casing, and twin/double impellers) for maximum abrasion resistance and longevity

• Inlet / Outlet Size: 2 inches ($50\text{ mm}$) main inlet

• Discharge Configuration: Often features a multi-way outlet manifold (e.g., a combination of 2-inch and 1.5-inch ports) to split water streams

• Maximum Vertical Head Lift: 90 to 110 meters (engineered for extreme vertical elevation and powerful long-distance pushing capacity)

• Maximum Flow Rate: Approx. 30 to 35 cubic meters per hour (roughly $500\text{ to }580\text{ Liters per minute}$)

• Maximum Suction Depth: 7 to 8 meters

• Starting System: Manual recoil pull-start with easy-pull decompression
